Folding Adjustable Hidden 180 Degree Concealed Door Hinge
Concealed Hinges
-
+86-13422769699 WhatsApp
-
sales@strumindah.com Email

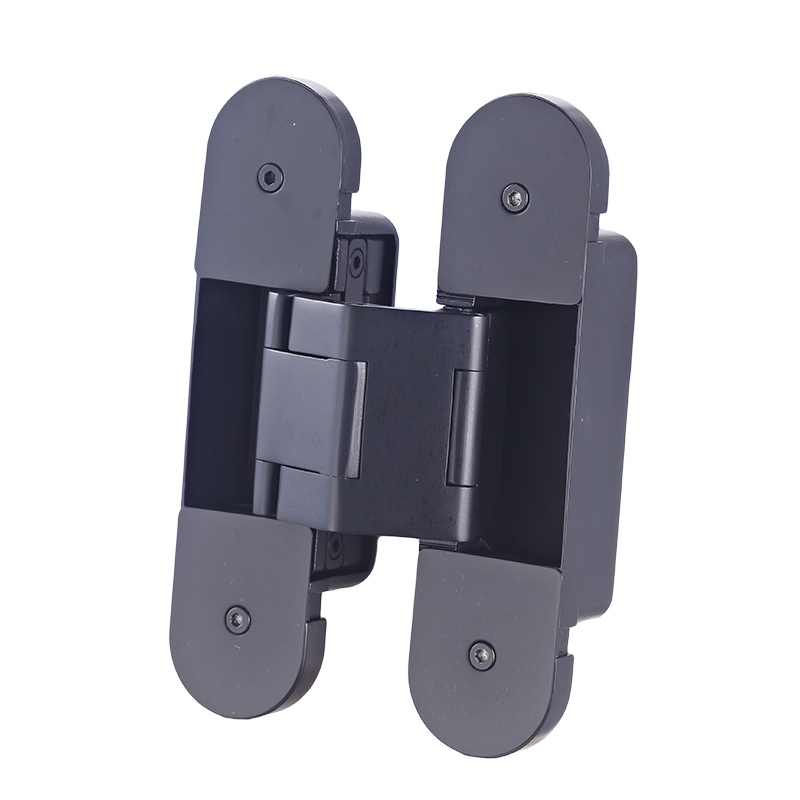

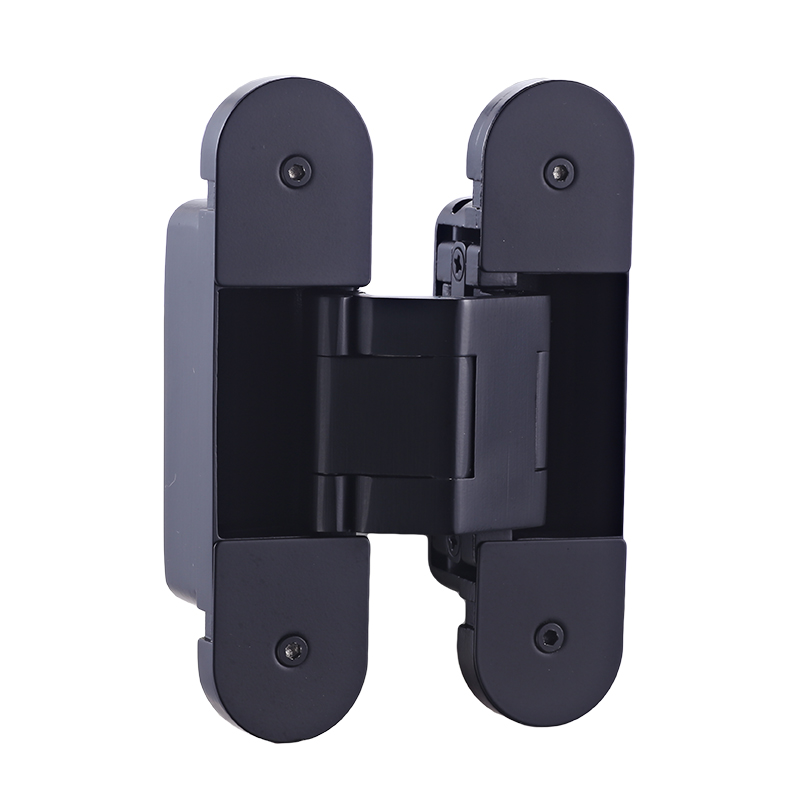

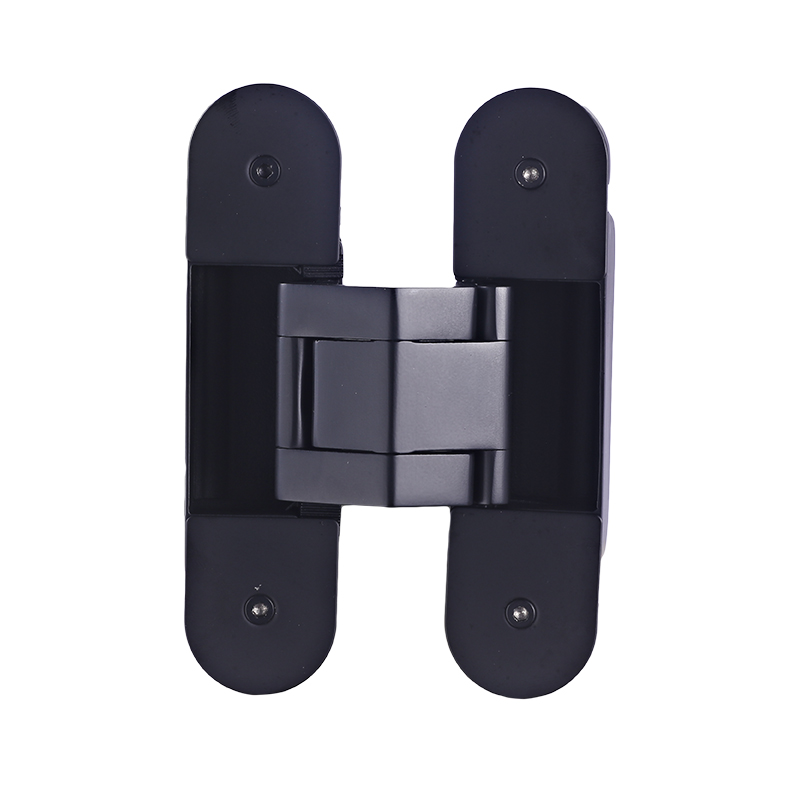

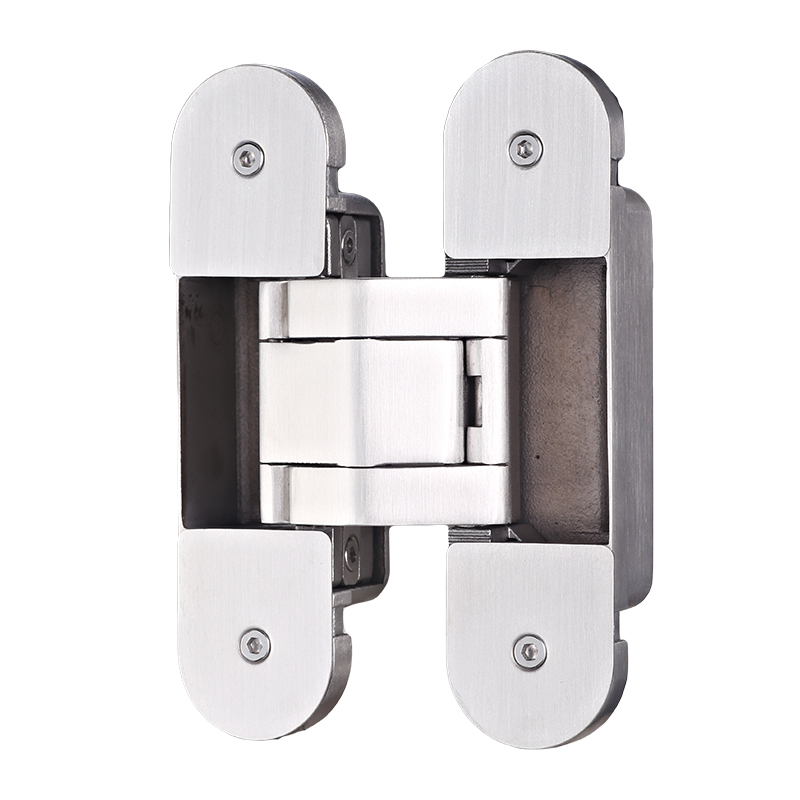

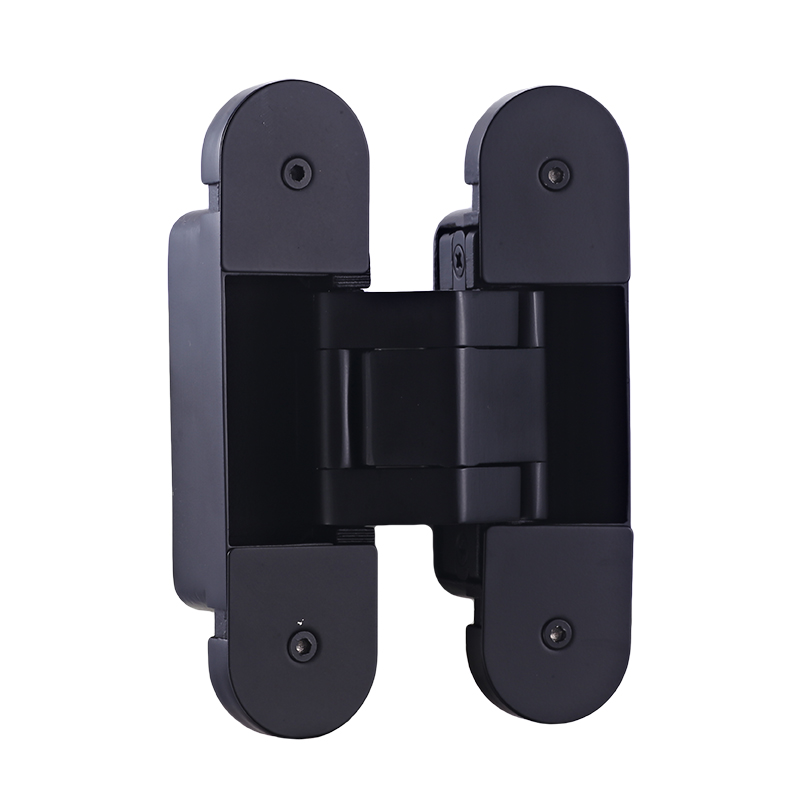

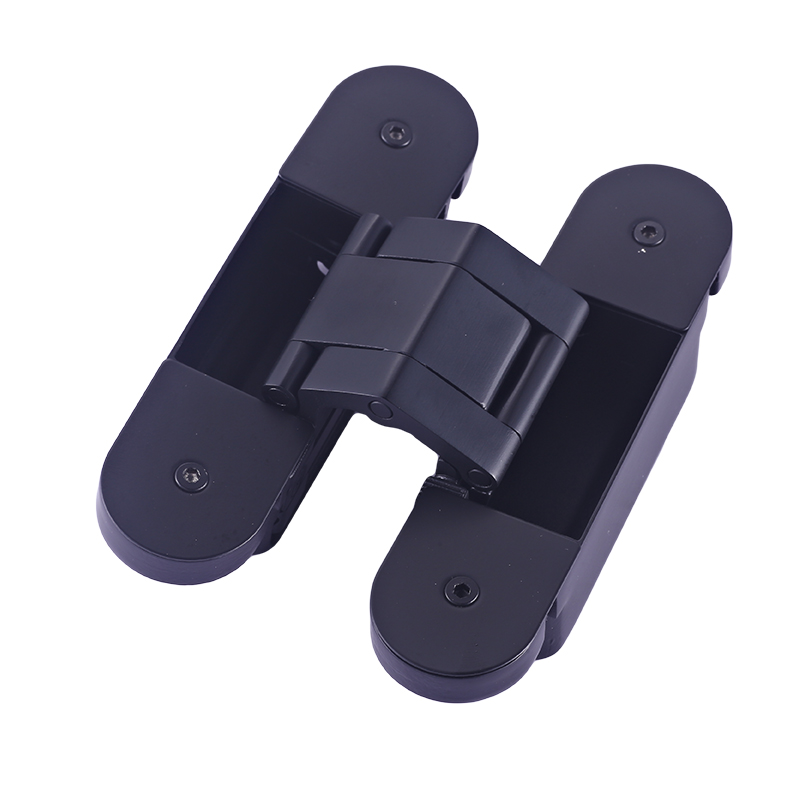

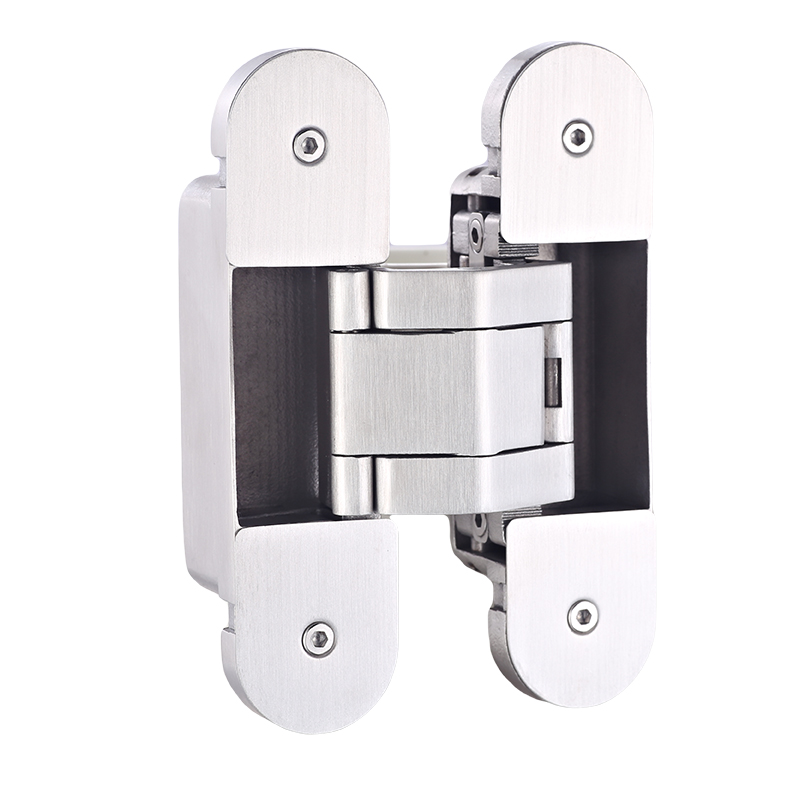

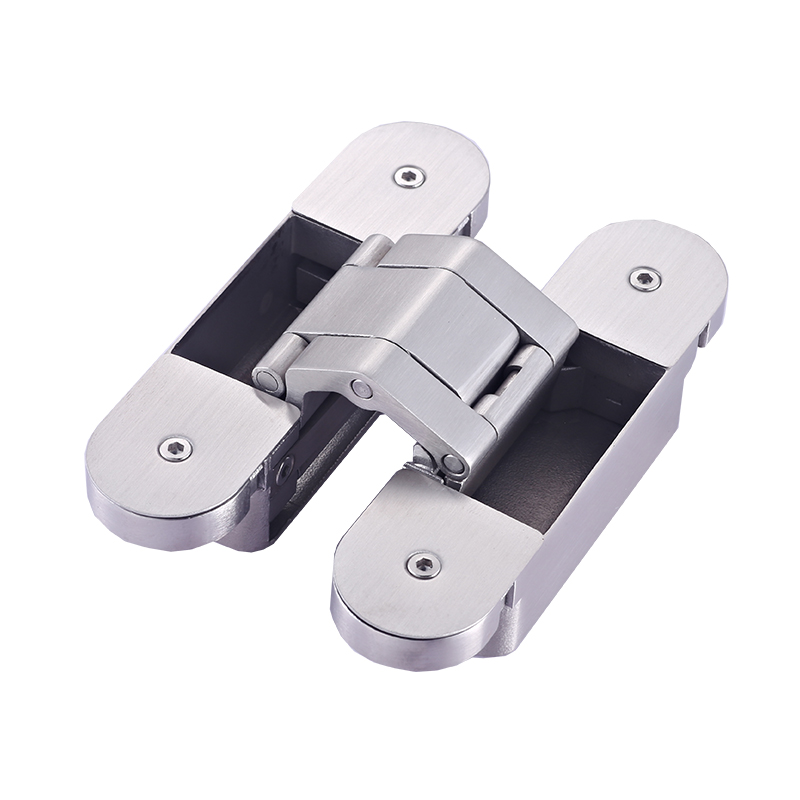

This 3D hidden hinge is made of 304 stainless steel with excellent durability and corrosion resistance, ensuring long-term use without deformation and load-bearing capacity of up to 80KG.
Product Parameters:
| Model | CHC80 |
| Material | SS304 |
| Load capacity (two hinges per door leaf) | 80kg |
| Overall length | 100mm |
| Width (frame part) | 28.5mm |
| Width (door part) | 28.5mm |
| Cutting depth (frame part) | 24mm |
| Cutting depth (door part) | 27mm |
| Opening angle | 180° |
| Minimum door thickness (timber door) | 40mm |
| Minimum door thickness (steel door) | 35mm |
STRUMIND respond quickly to customer needs and provide customized design solutions. Our technical team has rich experience and knowledge in the European and American standards of architectural hardware products, flexible use of 3D printer technology, CNC machine tool technology, laser cutting technology and other technologies to shorten the development cycle.
We have in-depth communication with customers, fully understand customer needs and expectations, and provide a full range of services from product design, material selection, production and processing to after-sales service.
