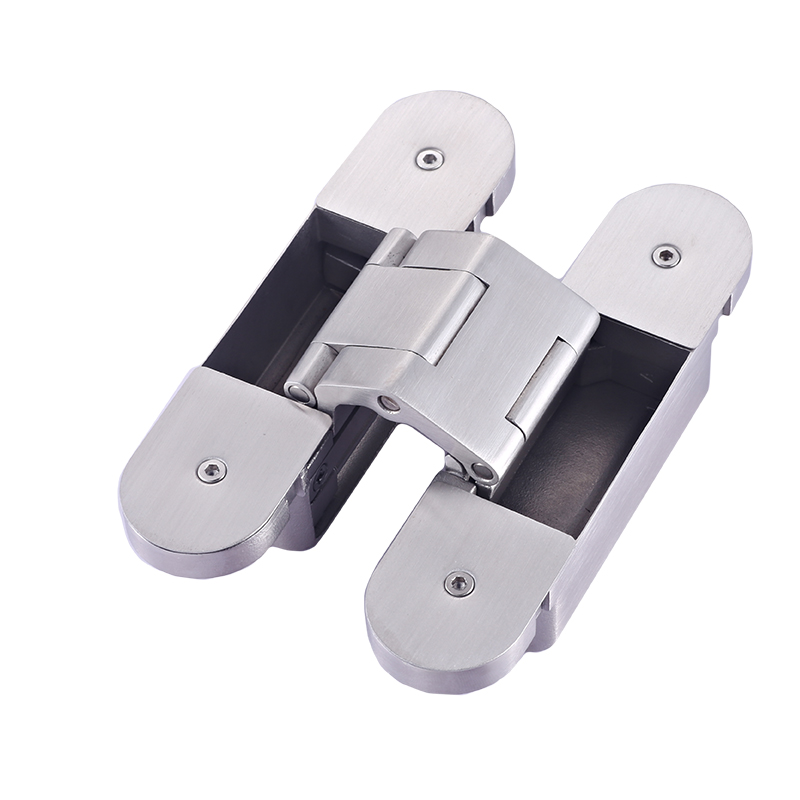

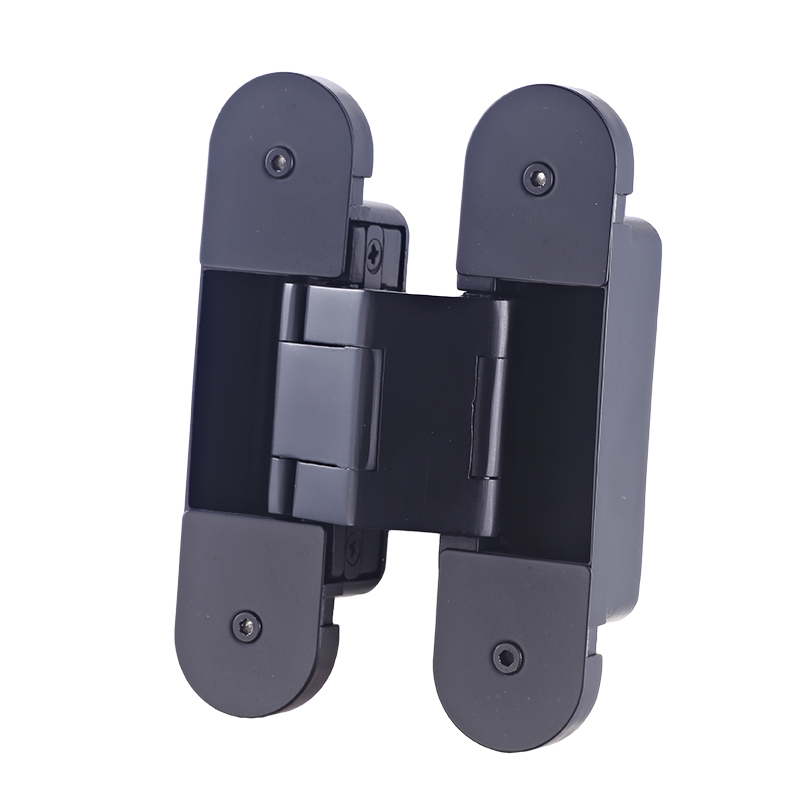

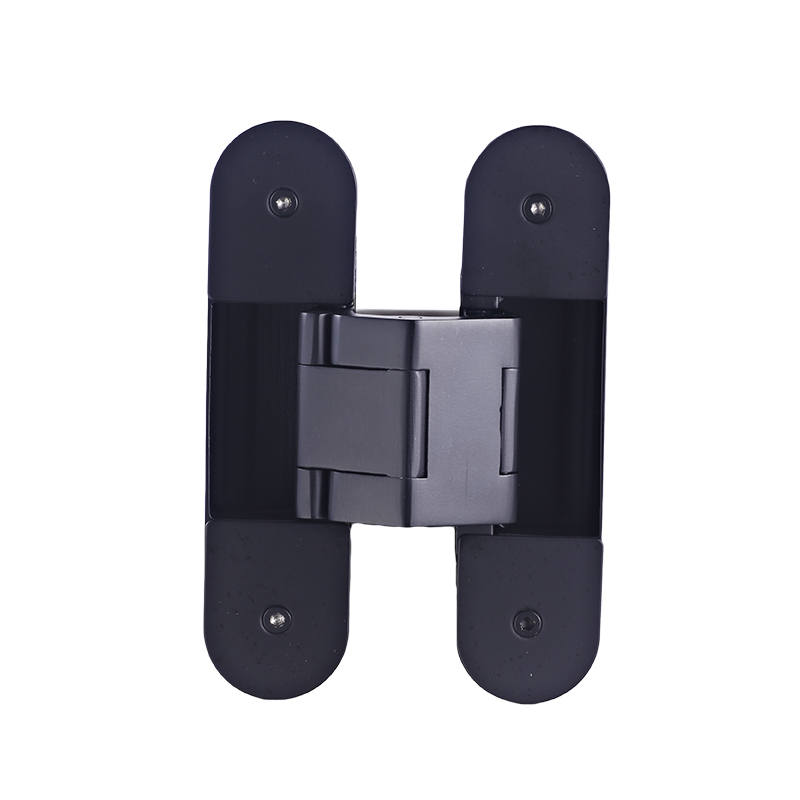

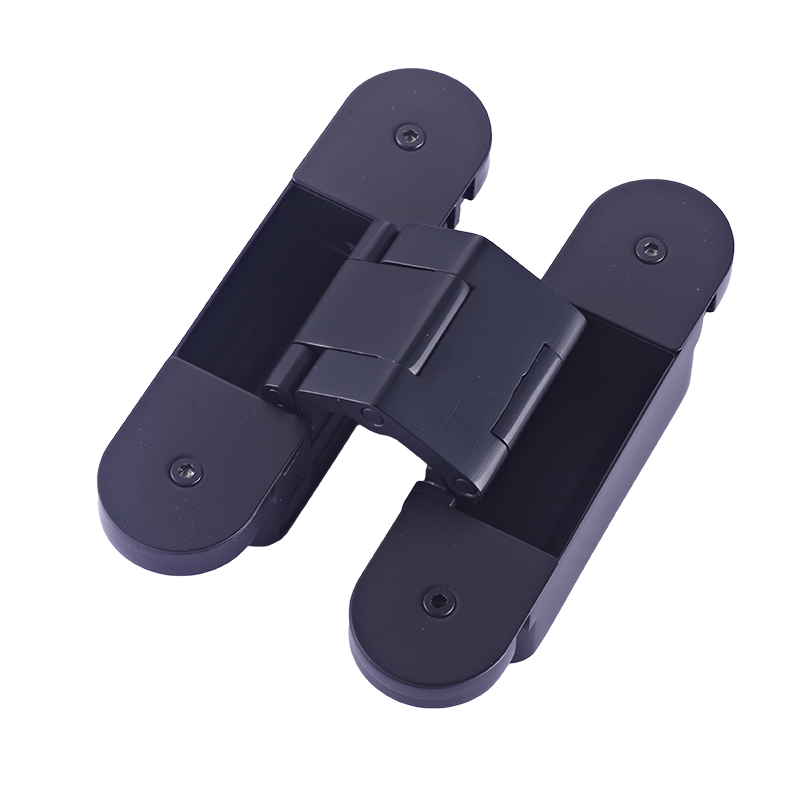

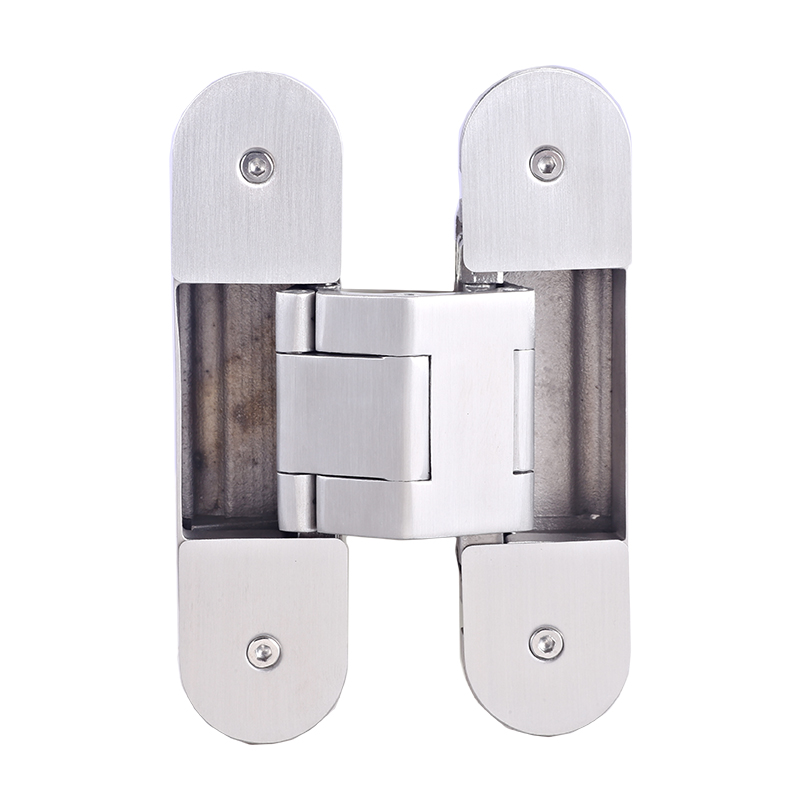

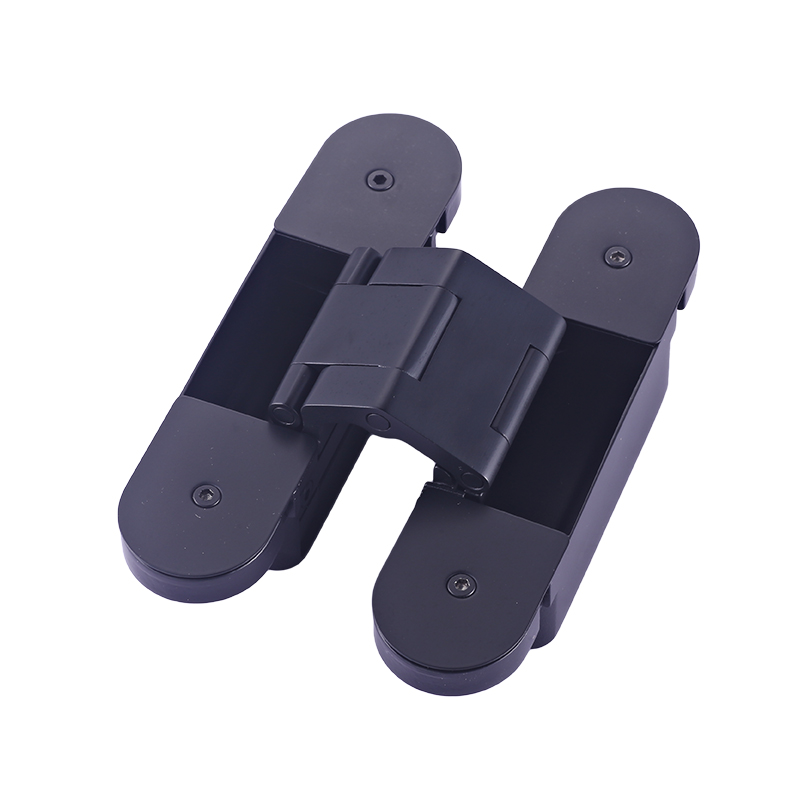

Three Way Adjustable Folding Hidden Door Hinge
Concealed Hinges
-
+86-13422769699 WhatsApp
-
sales@strumindah.com Email
This product is made of high-quality stainless steel material, which greatly enhances the load-bearing and durability of the product. Adopt high-quality bearings to ensure smooth and silent opening and closing, improve the use experience.
Product Parameters:
| Model | CHC100 |
| Material | SS304 |
| Load capacity (two hinges per door leaf) | 100kg |
| Overall length | 112mm |
| Width (frame part) | 28.5mm |
| Width (door part) | 28.5mm |
| Cutting depth (frame part) | 24mm |
| Cutting depth (door part) | 27mm |
| Opening angle | 180° |
| Minimum door thickness (timber door) | 40mm |
| Minimum door thickness (steel door) | 35mm |
STRUMIND respond quickly to customer needs and provide customized design solutions. Our technical team has rich experience and knowledge in the European and American standards of architectural hardware products, flexible use of 3D printer technology, CNC machine tool technology, laser cutting technology and other technologies to shorten the development cycle.
We have in-depth communication with customers, fully understand customer needs and expectations, and provide a full range of services from product design, material selection, production and processing to after-sales service.
