Commercial Brass Door Schlage Sc1 Keyway Mortise Cylinder
Cylinder
-
+86-13422769699 WhatsApp
-
sales@strumindah.com Email

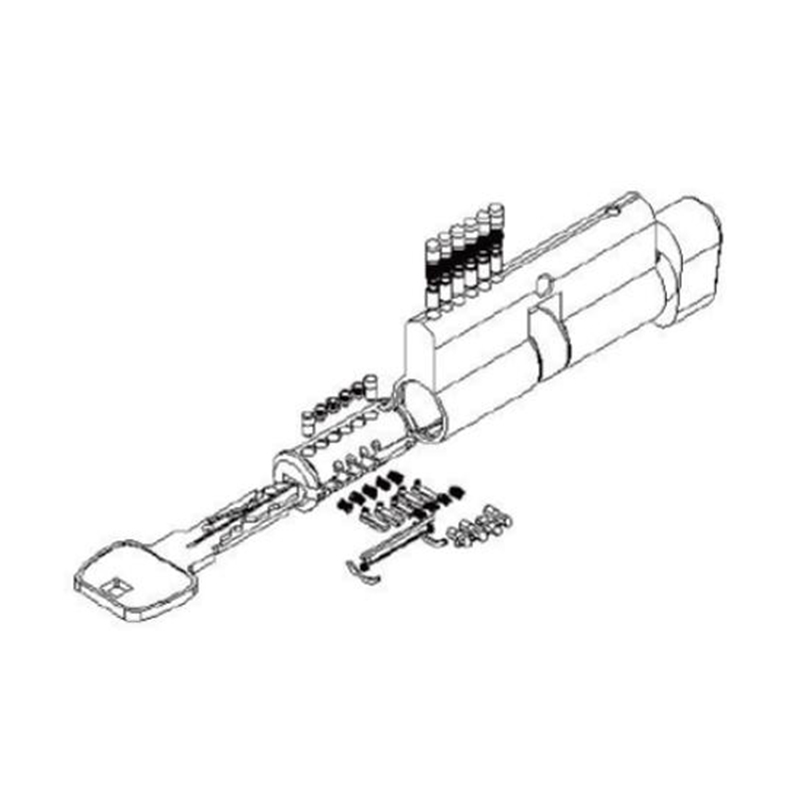

The model STC-HS is the Commercial Brass Door Lock Cylinder Schlage SC1 Keyway Mortise Cylinder which is built up with great endurance providing high security to commercial usage and applications. A brass mortise cylinder of model STC-HS features a snake keyway as well as an S keyway to enhance security. It maintains at least 100 million effective key variations which give it even greater security with zero mutual opening design.
The cylinder also includes special anti-pick pins in the scope of delivery and it is capable of withstanding min 200,000 cycles of testing. The product can also be fitted to both EURO and ANSI standard cylinders. Key breakage when turning up to 8.8 N·m is assured to ensure easy usability. Moreover, the product is certified with a 96hour corrosion test which adheres to the requirements of BSEN1670 Grade.
Being able to adapt to structural, color, logo and package customization and having complete OEM/ODM service, the STC-HS model provide a high end, secure and versatile assembly solution for the commercial locking mechanism.
Product Parameters:
| Model | STC-HS |
| Cylinder Housing | Brass |
Two kinds of key way There are snake key way and S key way | |
| Minimum number of effective are 100,000,000PCS.Can make zero mutual opening | |
| Special anti-pick pins | |
| Duability can reach 200.000 cycles | |
| These key way can produce EURO and ANSI cylinder too | |
| Keys shall resist a torque above 8.8N.M and still be usable | |
| The coroslon test above 96 hours according BSEN1670 Grade | |
STRUMIND respond quickly to customer needs and provide customized design solutions. Our technical team has rich experience and knowledge in the European and American standards of architectural hardware products, flexible use of 3D printer technology, CNC machine tool technology, laser cutting technology and other technologies to shorten the development cycle.
We have in-depth communication with customers, fully understand customer needs and expectations, and provide a full range of services from product design, material selection, production and processing to after-sales service.
