Concealed Hinges are the hidden joints that permit smooth closing of a door while tilted back into the surface. They not only allow the opening to have a modern look but also makes it easier to use. Whether for a kitchen application or an office desk setup, the current practices will ensure that the job is professionally done. This article details the installation of concealed hinges, the features of the 3-way adjustable concealed hinges, and lastly the hidden versus concealed dilemma.

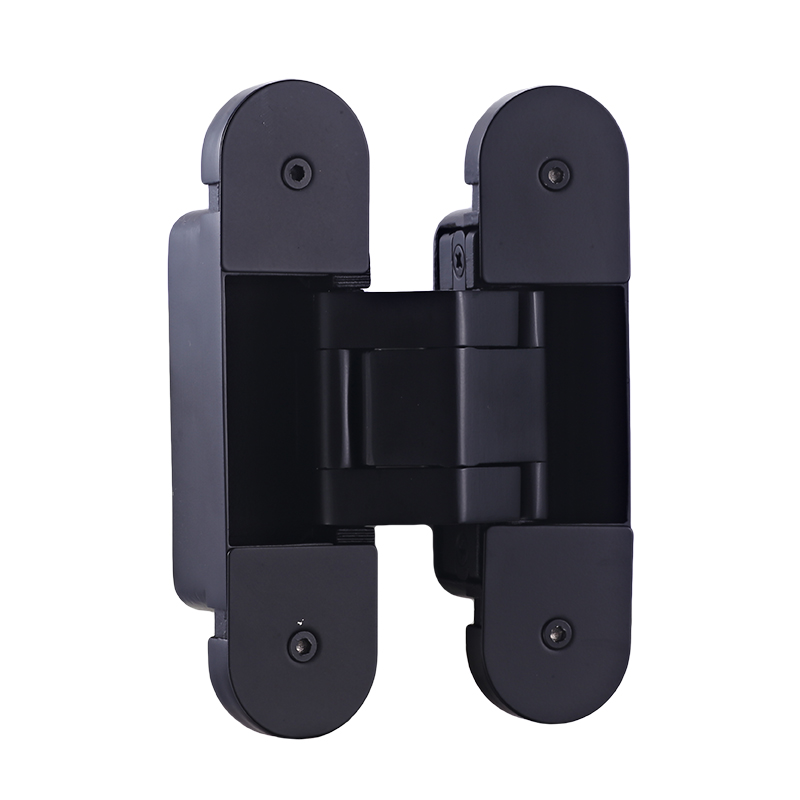

concealed hinges with 3-way adjustment introduce even more options because they work in THREE dimensions: up/down, in/out, and left/right. It allows, for example, the movement control of doors so that there are tighter closings even when surfaces are not leveled out properly. Such hinges are very useful in the case of big projects that involve many cabinet doors because with the help of these, undertakings become less challenging and time saving in the need to make alterations after fitting.

Step by Step Instruction: How Do You Fit A Concealed Hinge To A Cabinet Door

It takes an extreme level of effort to properly install concealed hinges. You can achieve a great installation by following these steps:

Scour the Hinges Placement:

Make a measurement and locate the area in which a hinge cup will go at the back area of the door cover. Most often, the hinge is installed in a distance of 2 to 3 inches from the bottom and the top edges of the cabinet door.

Forstner Bit or Hinge Boring Bit Use the Following Steps to Boring a Hinge Cup Hole:

Boring a shallow hole for hinge cup can be done with a Forstner bit or hinge boring bit. In most cases, the diameter is standard, in other words, the total diameter is 35mm but again check which sizes are needed from your hinge.

Fitting The Hinge To The Door:

The hinge cup must be seated into the drilled hole and fastened with screws. See to it that the angle is protruding along the outer portion of the door.

Attach the Mounting Plate:

Position the hinge mounting plate to the rear facing side over the inner walls of the cabinet structures. Insert screws to fasten it as frontal wings of the door hinge are always resting on the frame.

Fix The Door To The Cabinet:

The hinge arm can be clipped into the mounting plate or screwed, depending on the type of hinge. Ensure that the door can smoothly be opened and closed.

Adjust the Hinge:

The screws provided on the concealed hinges with 3-way adjustment can be used to correct the position of the doors. Adjust the height or depth or the right and left alignment in order for the door to be right against the frame of the cabinet.

Understanding Hidden Hinges vs Concealed Hinges

Many people often confuse hidden hinge with the other term, “concealed” hinge but there are different definitions to those terms. Hidden hinges are those faced with interior which other people cannot see since they are found in the inside mostly on the cabinets or special furniture. Concealed hinges are however fixed inside the doors of the cabinets such that no one sees the hinge when the door is closed but they may be seen to some extent above the horizontal join when opened. There is no difference between the two in that they enhance the aesthetics of the woodwork furniture though concealed hinge have more features including soft close hinges and three-way adjustment.

Application Scenarios

In How to use a concealed hinge on cabinet door once, it has been applied one can move along with the project whether residential kitchen, office cabinets, shops furniture etc. Concealed hinges are normally found in modern kitchens where simplicity is the order of design or is found in the office set up to present a neat professional feel. The three-way adjustment feature of the cabinet doors makes it easier and quicker for cabinet door installers in situations where accuracy in alignment of cabinet doors is generally paramount.

One way of improving the appearance and utility of cabinets, be it for the kitchen, office, or shop installation is hiding the hinges. Concealed hinges with 3-way adjustment guarantee a level of adjustment that promotes ease of use and proper fitting. You can be certain of getting a professional installation if you adhere to the step-wise instructional guidelines. Learn also the difference between hidden hinges and concealed hinges which in many cases appear to be the same. If the right hinges are used, and they are properly installed, the cabinets will serve their purpose and look elegant for a long time.
